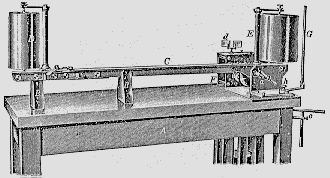

(Kymographion (mit 2-1/2 m. langer, auf dem Apparat beruss- und
fixierbar Papier-schleife.)
Description: This device is substantially like the Hering-style
kymograph for the use of very long paper strips. This device is
set up so that two important operations, the coating of the paper
with carbon from a Bunsen burner and the fixing of a recording by
coating the paper directly with shellac can be carried out on the
apparatus. (Expanded caption Copyright 1998, Edward J. Haupt)
(Kymograph with 2-1/2 meter long paper sliding-rails, which can
be coated with carboned (besooted) and fixed with shellac on the
apparatus (itself).)
Source of illustration: Zimmermann, E. (1903). XVIII. Preis-
Liste über psychologische und physiologische Apparate
(p. 72). Leipzig: Eduard Zimmermann.
DESCRIPTORS:
Type: Component, recording
Stimulus:
System:
Output: Extended graphical record of continuous amplitude.
